This alert provides guidance from the Engineered Wood Products Association of Australasia (EWPAA) and Timber Queensland on what constitutes acceptable practice.
Why this matters

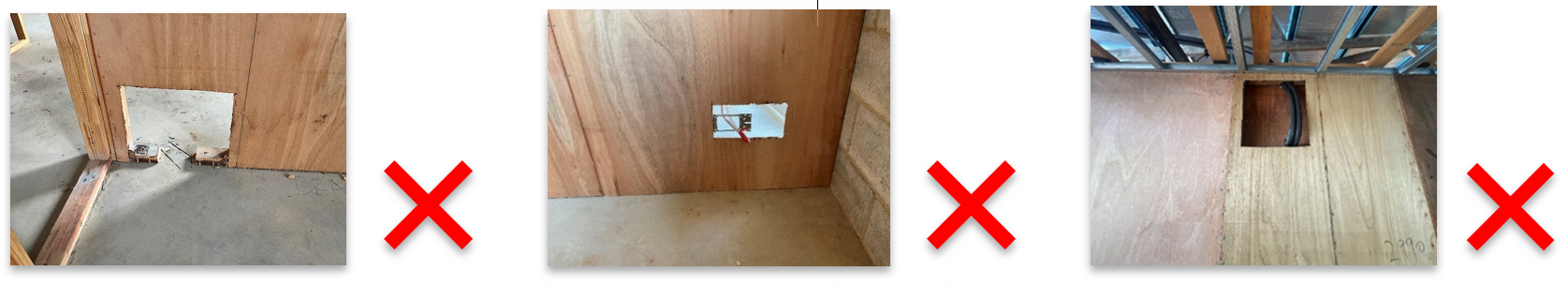

- Oversized holes reduce the structural integrity of buildings.
- Proactive inspections have identified repeated instances across Queensland.
- Following EWPAA guidance will help maintain compliance.

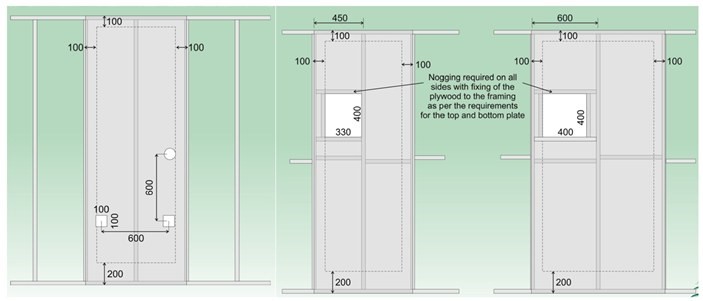

Acceptable penetrations in ply bracing panels
According to the EWPAA:
- A neat hole (not overcut) up to 100 mm x 100 mm may be cut within 100 mm of vertical and top edges, and 200 mm of the bottom edge of the panel.
- Multiple 100 mm x 100 mm holes are allowable within this envelope, but centres must be at least 600 mm apart.
- One hole up to 400 mm x 400 mm is acceptable if located between studs, framed with nogging, and fixed as required for top and bottom plates.
